Features
Material: PE100
Pressure rating: SDR9/PN20, SDR11/PN16, SDR17/PN10
Size: dn20-1000mm
Electrode pin diameter: 4.7mm, 4.0mm also available
Standard: ISO4427-3, EN12201-3, AS/NZS 4129, BS 6920
Color: black color
Joint: Thermal fusion or Electrofusion
Product Technology: Injection moulded
Application: For water & gas
Certifications: Test reporter for GB/T 15558.2-2005, CE certificate for EN12201-3 & EN1555, WRAS
Benefits Of HDPE Electrofusion Fittings
It allows easier access when welding in difficult locations or when there is limited space around the pipe
It enables joining polyethylene materials of different generations and wall thicknesses without weakening the weld
The installation cost is low, making it suitable for use in private dwellings and small projects
Compared to butt fusion welding, the electrofusion welding equipment is lighter and more affordable, allowing easy transportation and handling
It offers a wide range of solutions using simple power points, including tapping saddles and service connections
Physical Properties

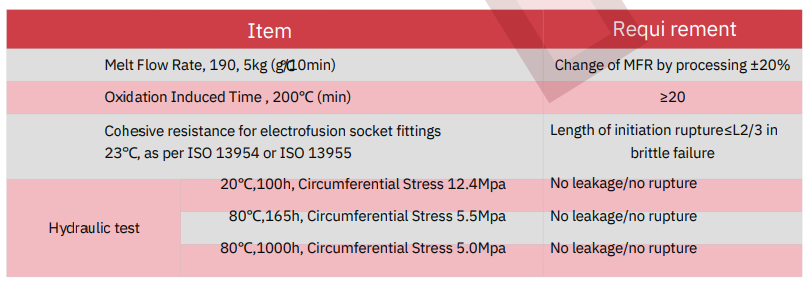

The dimensions of HDPE electrofusion fittings shall conform to ISO4427-3 standard, the physical properties shall meet to the below table:
-

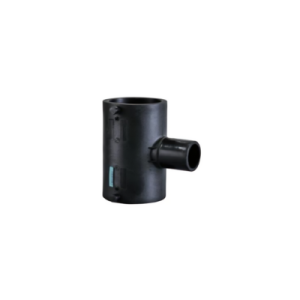

E/F REDUCING TEE
Benefits Of HDPE Electrofusion Fittings -

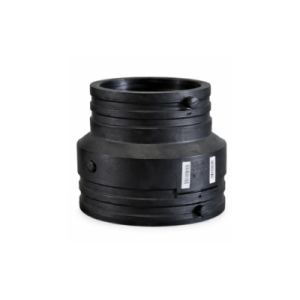

E/F REDUCER
Benefits Of HDPE Electrofusion Fittings -

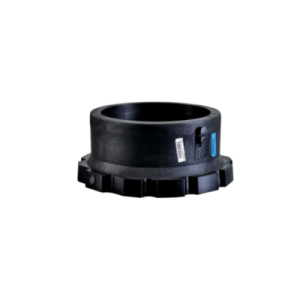

E/F FLANGE ADAPTOR
Benefits Of HDPE Electrofusion Fittings -
E/F END CAP
Benefits Of HDPE Electrofusion Fittings -

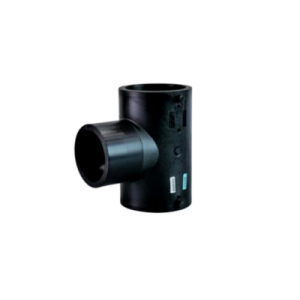

E/F EQUAL TEE
Benefits Of HDPE Electrofusion Fittings -

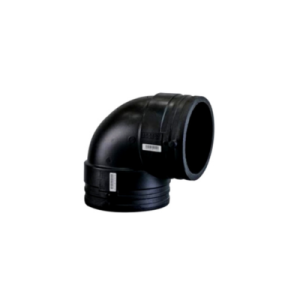

E/F ELBOW 90°
Benefits Of HDPE Electrofusion Fittings -
E/F ELBOW 45
Benefits Of HDPE Electrofusion Fittings -
E/F COUPLER
Benefits Of HDPE Electrofusion Fittings
