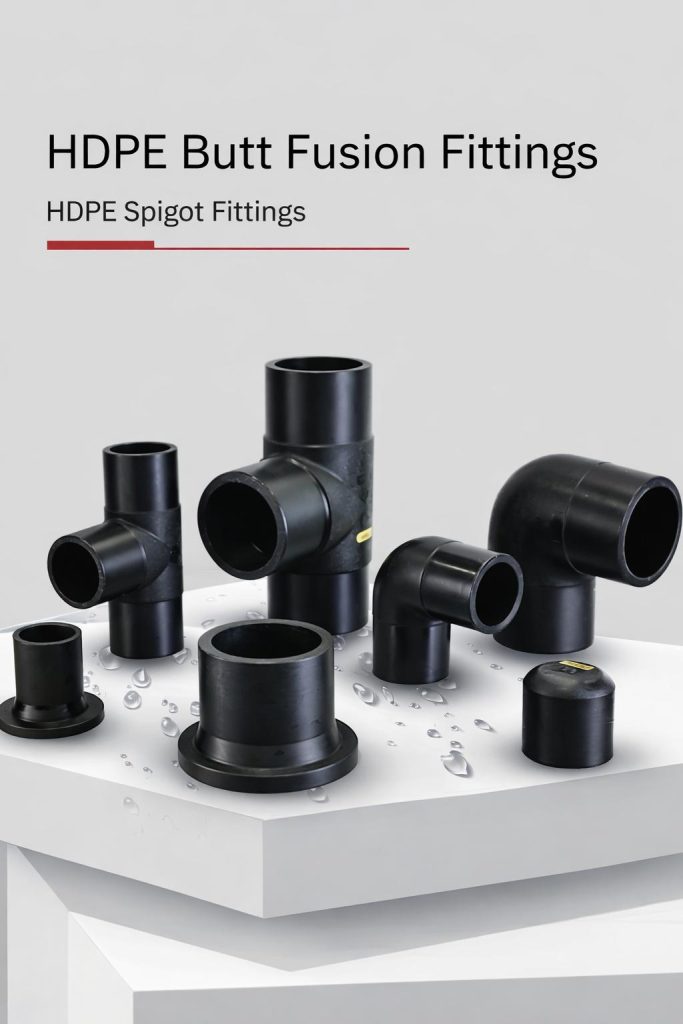

HDPE Butt Fusion Fittings

hdpe fittings web optimized

Features

Material: PE100
Pressure rating: SDR9/PN20, SDR11/PN16, SDR17/PN10
Size: dn20-800mm
Standard: ISO4427-3, EN12201-3, AS/NZS 4129, BS 6920
Color: black color
Joint: Thermal fusion or butt welding
Product Technology: Injection moulded or lathed
Application: For water & gas
Certifications: SGS test report for ISO4427-3, CE certificate for EN12201-3 & EN1555, WRAS

Benefits of HDPE butt fusion fittings

Possible to weld pipes with different generations of polyethylene
Through the removal of the melted material it is produced a self-cleaning of the welding
No need additional fittings for joining, what simplifies the procedure
With a pipe diameter higher than 200 millimeters is more efficient and economical
The pipe can be easily bended without increasing imperatively the tension of the whole installation
The axial alignment and the round of the pipes are simple

Physical Properties

HDPE butt fusion fittings shall strictly conform to ISO4427-3 standard, with their physical properties as below table:

screenshot 2026 01 05 214731
